高速成像
LED光源电池组
200W 光源电池组

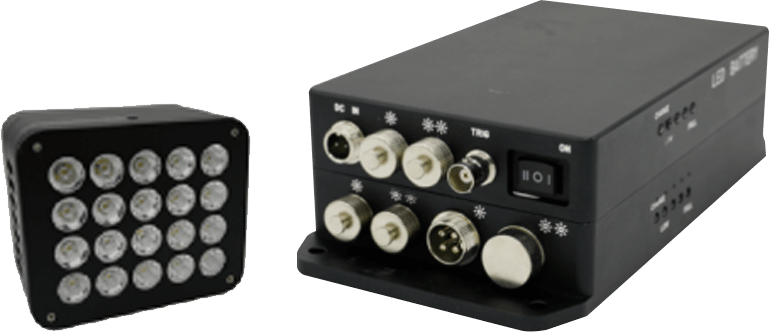

MODEL U-200B HI-G WHITE LED LIGHT BATTERY For Single 200W LED
耐冲击白光LED锂电池组 對接一組200WLED


Specifications


容量 Capacity:

Lithium Battery 鋰電池, 18.5V/2.5Ah/92W

輸出 Output:

18.5V/1.5A

充電 Charge:

21V/2A

充電時間 Charge Time:

4 hours

多方電池安全保護 Many Safety functions with safety timer

LED充電指示 LED indicator to display charge status.

紅燈 Red LED: charging  綠燈 Green LED: full

充飽電指示 LED indicator to display battery capacity, from LOW to FULL

可供電一個200WLED時間長達40mins

Provide 40 mins power for Single 200W Hi-G white LED lighting

直接一個200WLED全開模式 On/Off switch to turn on the battery constantly

5V TTL 外觸發模式, 一分鐘LED自動熄滅 (建議提前1秒先行觸發電池)

5V TTL (Pulse Duration of 0.1sec )for turn on the battery in 1 minutes

Power output to LED have time delay of 0.1sec after 5V TTL IN

(We recommend earlier trigger of 1sec for Battery TTL IN before camera trigger-in for enough bright light with camera image)

LED燈光接電池會比接電源亮度下降30%

LED with Battery will less 30% brightness than power supply with LED.

Housing:

Aluminum Alloy



High-G:

High-G, Resistance to shock

Dimension:

208 x 110 x 58 mm

Weight:

1.58kgw
